Product Overview

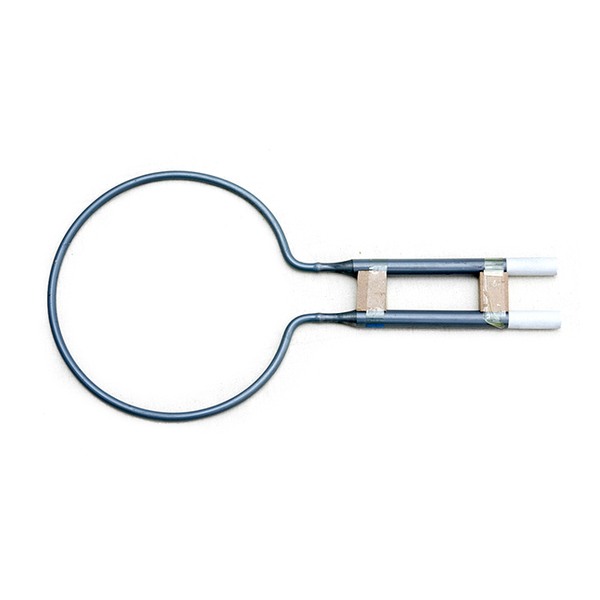

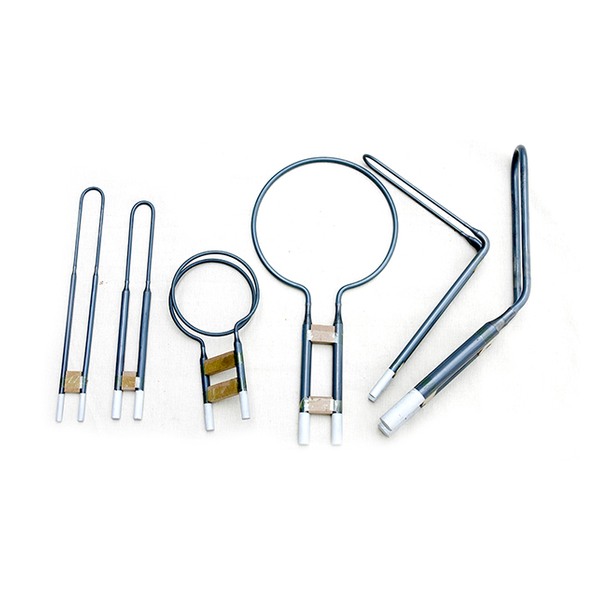

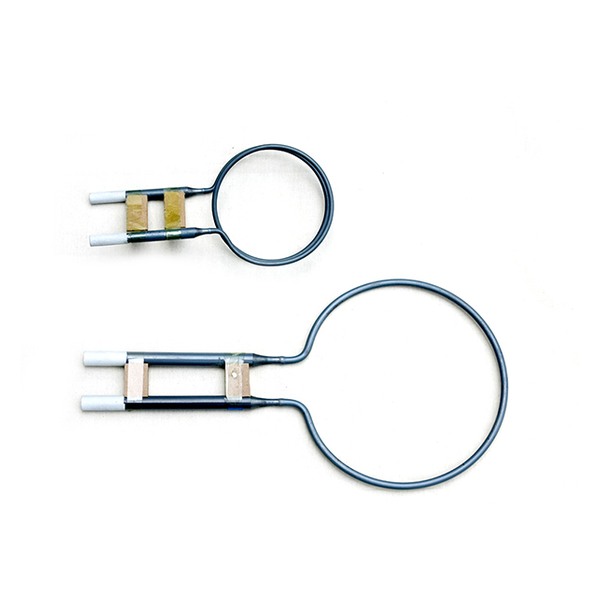

Special-shaped molybdenum disilicide heating elements include loops, circles, angled legs and other non-standard forms made for a confirmed chamber geometry. Shape development starts from a drawing or sample rather than from a catalogue picture.
Applications
They serve OEM furnace development, compact muffle systems, retrofit work and research equipment requiring localized or unusually distributed high-temperature heat.
Selection Data
Choose among 1700, 1800 and 1900 grades only after reviewing element temperature, atmosphere and cycling. Supply a full-scale drawing, connection plan, support positions, tolerances, resistance and quantity.
Quotation Checklist
For a faster technical response, include the furnace manufacturer and model when known, photographs of the complete element and both terminals, a sketch with dimensions, the required quantity and the reason for replacement. If an old sample is available, retain it until the proposed dimensions and resistance have been agreed.
Replacement Reference
Where the existing furnace is from Nabertherm, Carbolite Gero, CM Furnaces, Deltech or another maker, the maker’s name is used only to identify the application. Approval depends on the actual element and furnace data.
Technical Review Before Production
A heating element should not be selected from appearance alone. Send the existing drawing, readable markings, overall and sectional dimensions, nominal resistance, voltage, power and quantity. Also identify the furnace temperature, atmosphere, cycle frequency and mounting orientation. These details allow the proposed geometry to be checked before a quotation or production drawing is issued.
Installation And Service Considerations
Element spacing, terminal ventilation, support design and expansion clearance affect operating stability. New and aged elements may have different electrical behaviour, so circuit grouping and transformer adjustment should be reviewed during maintenance. Avoid mechanical stress during unpacking and installation, and keep conductive contamination away from terminals and insulation.
Supply Scope And Important Notice
Special Shaped MoSi2 Elements can be supplied in standard or customer-specific dimensions after technical confirmation. The final proposal applies only to the reviewed drawing and operating conditions. Brand and furnace-maker names, when mentioned, identify the customer’s existing equipment; they do not imply authorization, endorsement or a universal drop-in replacement.
