Product Overview

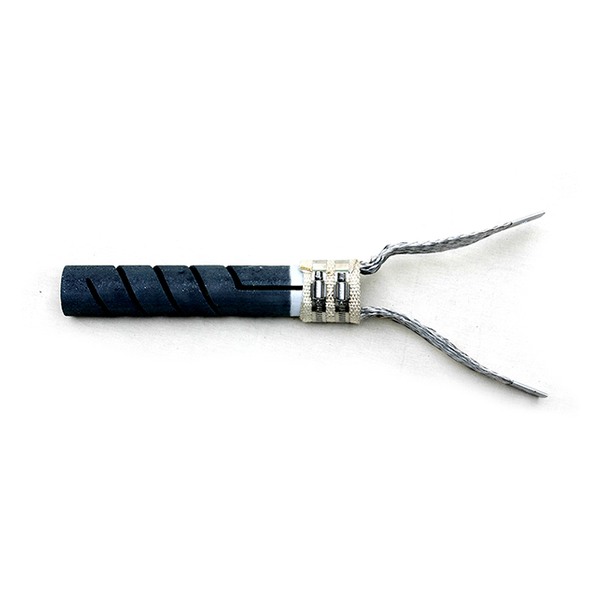

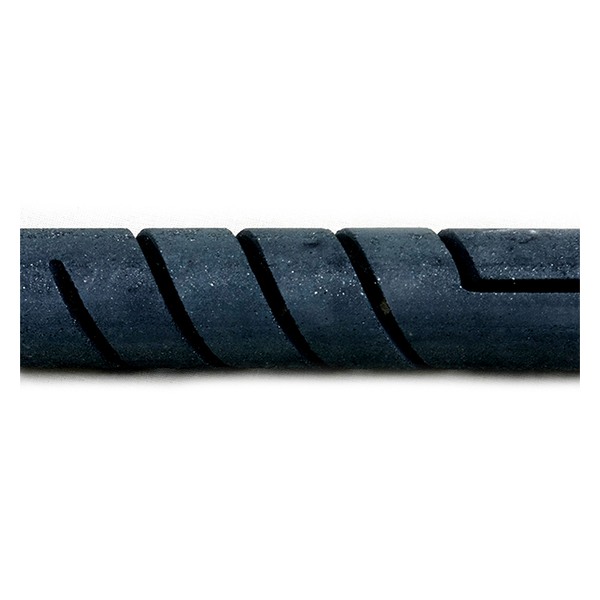

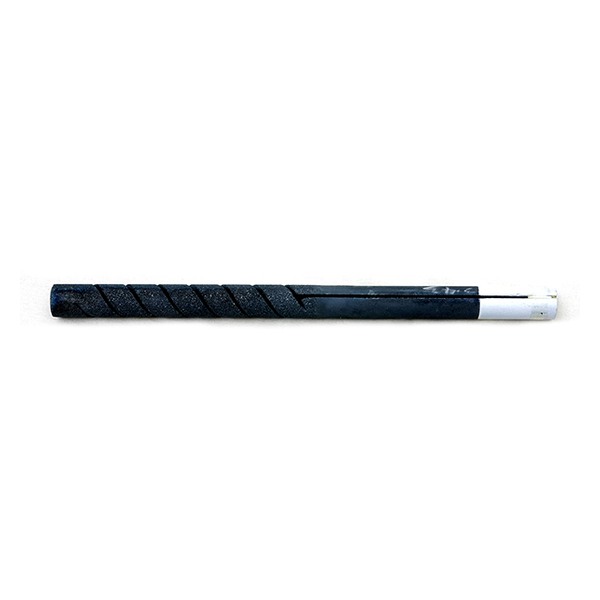

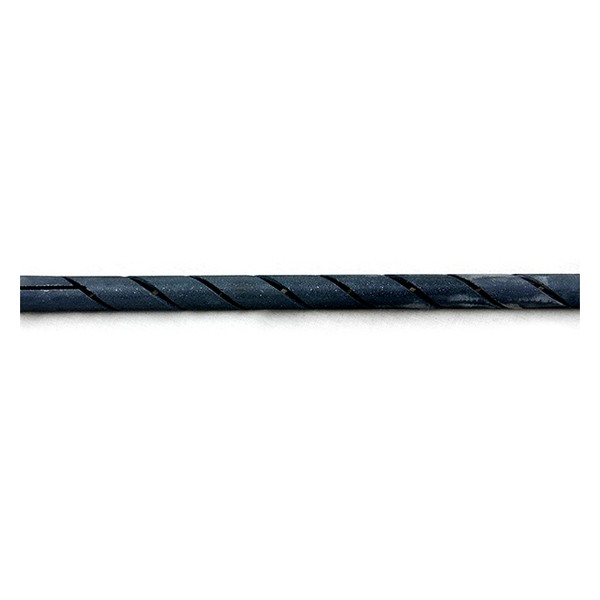

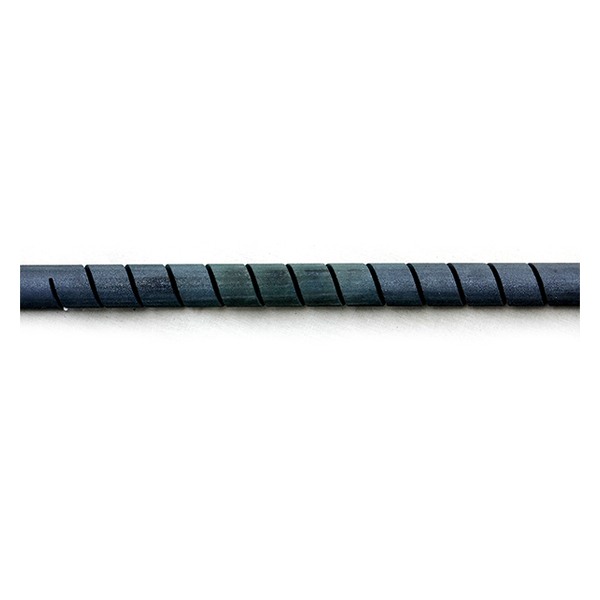

Type SG silicon carbide heating elements have a spiral-cut hot zone that concentrates resistance in a defined section. The design can provide a useful combination of compact length and controllable heating area when matched correctly to the power supply.
Applications
Applications include compact industrial furnaces, laboratory chambers, ceramic firing and maintenance replacement where the original spiral element can be measured.
Selection Data
Required data include diameter, bore, heated spiral length, overall length, cold-end dimensions and resistance. The operating atmosphere and contamination from glaze, alkali or metal vapour must also be disclosed.
Quotation Checklist
For a faster technical response, include the furnace manufacturer and model when known, photographs of the complete element and both terminals, a sketch with dimensions, the required quantity and the reason for replacement. If an old sample is available, retain it until the proposed dimensions and resistance have been agreed.
Replacement Reference
The page may answer searches for replacement of Kanthal Globar SG, I2R spiral or Tokai EREMA heating elements, but every enquiry remains subject to independent technical verification.
Technical Review Before Production
A heating element should not be selected from appearance alone. Send the existing drawing, readable markings, overall and sectional dimensions, nominal resistance, voltage, power and quantity. Also identify the furnace temperature, atmosphere, cycle frequency and mounting orientation. These details allow the proposed geometry to be checked before a quotation or production drawing is issued.
Installation And Service Considerations
Element spacing, terminal ventilation, support design and expansion clearance affect operating stability. New and aged elements may have different electrical behaviour, so circuit grouping and transformer adjustment should be reviewed during maintenance. Avoid mechanical stress during unpacking and installation, and keep conductive contamination away from terminals and insulation.
Supply Scope And Important Notice
Type SG SiC Heating Elements can be supplied in standard or customer-specific dimensions after technical confirmation. The final proposal applies only to the reviewed drawing and operating conditions. Brand and furnace-maker names, when mentioned, identify the customer’s existing equipment; they do not imply authorization, endorsement or a universal drop-in replacement.
